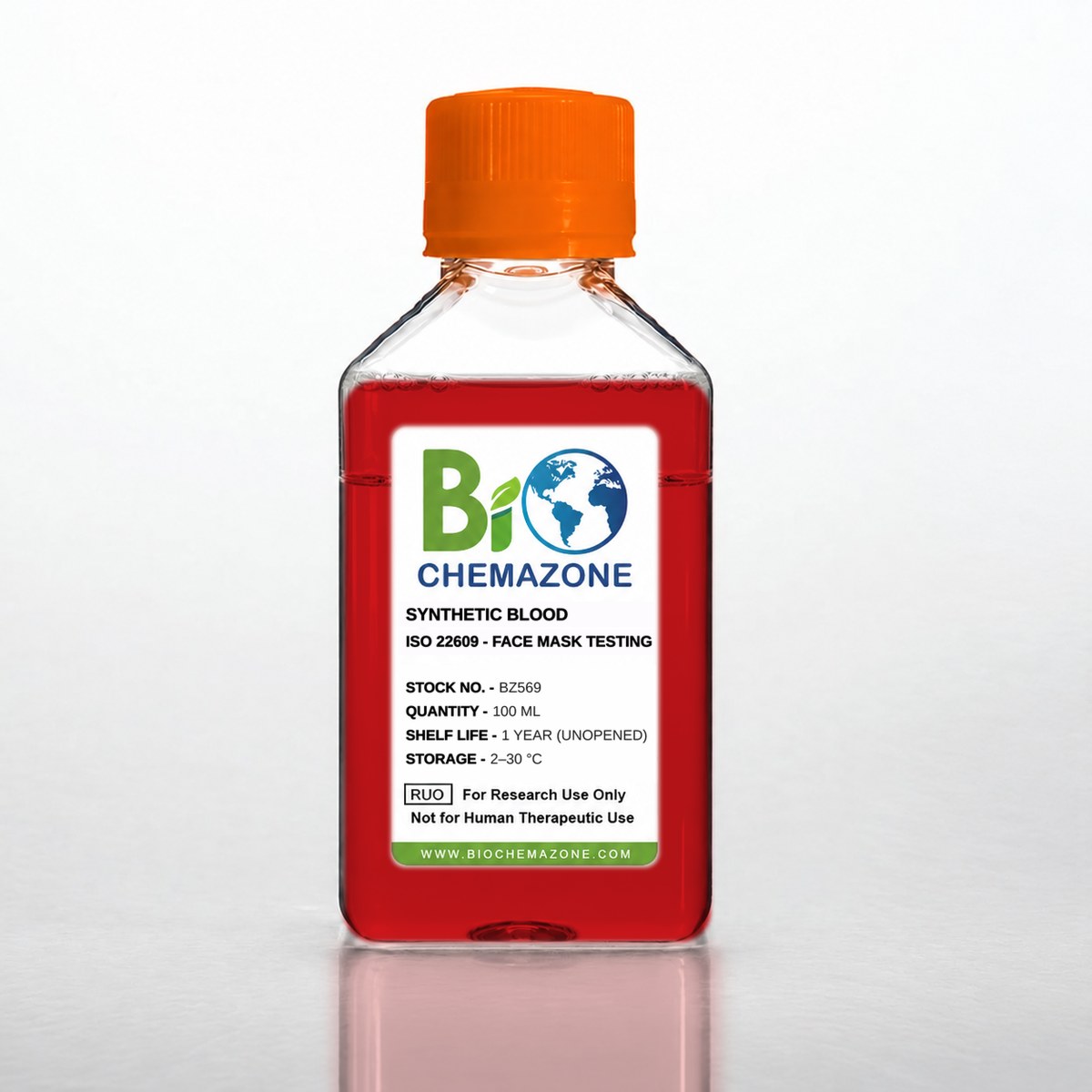

Synthetic Blood ISO 22609 (Medical Face Mask Splash Resistance Test Fluid) BZ569
Product Code: BZ569
Manufacturer: Biochemazone
Available Pack Sizes: 100 mL, 200 mL, 500 mL, 1 L
Custom Bulk Quantities Available
Product Overview
Biochemazone Synthetic Blood ISO 22609 BZ569 is a red, non-biological test fluid prepared for ISO 22609, the test method for resistance of medical face masks to penetration by synthetic blood. In the method, a fixed volume of fluid is projected horizontally at the mask at velocities that correspond to human blood pressures of 10.6, 16.0 and 21.3 kPa (80, 120 and 160 mmHg), and the inner side of the mask is inspected for penetration.
The European medical face mask standard EN 14683 uses this method for the splash-resistance requirement of Type IIR masks (at least 16.0 kPa). Each batch of BZ569 is prepared with ISO 3696 compliant high-purity water under Biochemazone’s ISO 9001 / GMP quality system and checked for surface tension (0.042 ± 0.002 N/m) and pH (7.3; typical range 7.2–7.4).
BZ569 is used by mask manufacturers, test laboratories and certification bodies for splash-resistance testing, production quality control and material development. It contains no human or animal blood.
Key Features & Benefits
✅ Made for ISO 22609 – Test fluid for the synthetic-blood splash method for medical face masks
✅ Supports EN 14683 Type IIR Testing – Splash-resistance testing at 16.0 kPa and the other ISO 22609 pressure levels
✅ Controlled Surface Tension – 0.042 ± 0.002 N/m (42 ± 2 mN/m), representative of blood and body fluids
✅ pH 7.3 (Range 7.2–7.4) – Close to the pH of human blood
✅ Strong Red Colour – Clear visual detection of penetration on the inner mask layer
✅ Non-Biological & Biosafe – No human or animal blood; no infection risk
✅ Ready-to-Use – No dilution or mixing required
✅ Made in Canada – Manufactured under ISO 9001 / GMP quality systems
Applications
🧪 Medical Face Mask Testing
• Splash resistance to ISO 22609
• EN 14683 Type IIR splash-resistance requirement
• Comparison testing alongside ASTM F1862
🩺 Mask Development & Quality Control
• Filter-layer and cover-web material selection
• Production batch release testing
• Supplier and incoming-material qualification
🔬 Research & Training
• Respirator and surgical mask barrier studies
• Operator training on splash-test rigs
Usage Areas
- Medical face mask and respirator manufacturers
- Medical-device and textile test laboratories
- Certification and notified-body laboratories
- Nonwoven and filter-media producers
- Hospital procurement and infection-control quality teams
Typical Properties
- Appearance: Red liquid
- pH: 7.3 (typical range 7.2–7.4)
- Surface Tension: 0.042 ± 0.002 N/m
- Water Grade: ISO 3696 purified water
- Composition: Water-based solution with thickener, red dye, surfactant and buffer salts; contains no blood
- Biological Status: Non-biological synthetic fluid
Storage & Stability
- Storage Temperature: 2–30 °C
- Shelf Life: 1 year for unopened bottles
- Shipping: Room temperature
- Mix gently before use; bring to the test temperature stated in the method
Customization Options
- Surface tension and viscosity adjustment
- pH adjustment
- Colour intensity adjustment
- Custom pack sizes and bulk / OEM supply
Ordering Information
BZ569 is available in standard laboratory sizes or OEM/bulk supply formats.
📄 MSDS, Technical Datasheet, and Certificate of Analysis (CoA) available upon request
📧 Email: info@biochemazone.com
🌐 Website: www.biochemazone.com
⚠️ For research, education, and in vitro testing only. Not for human or animal use.
