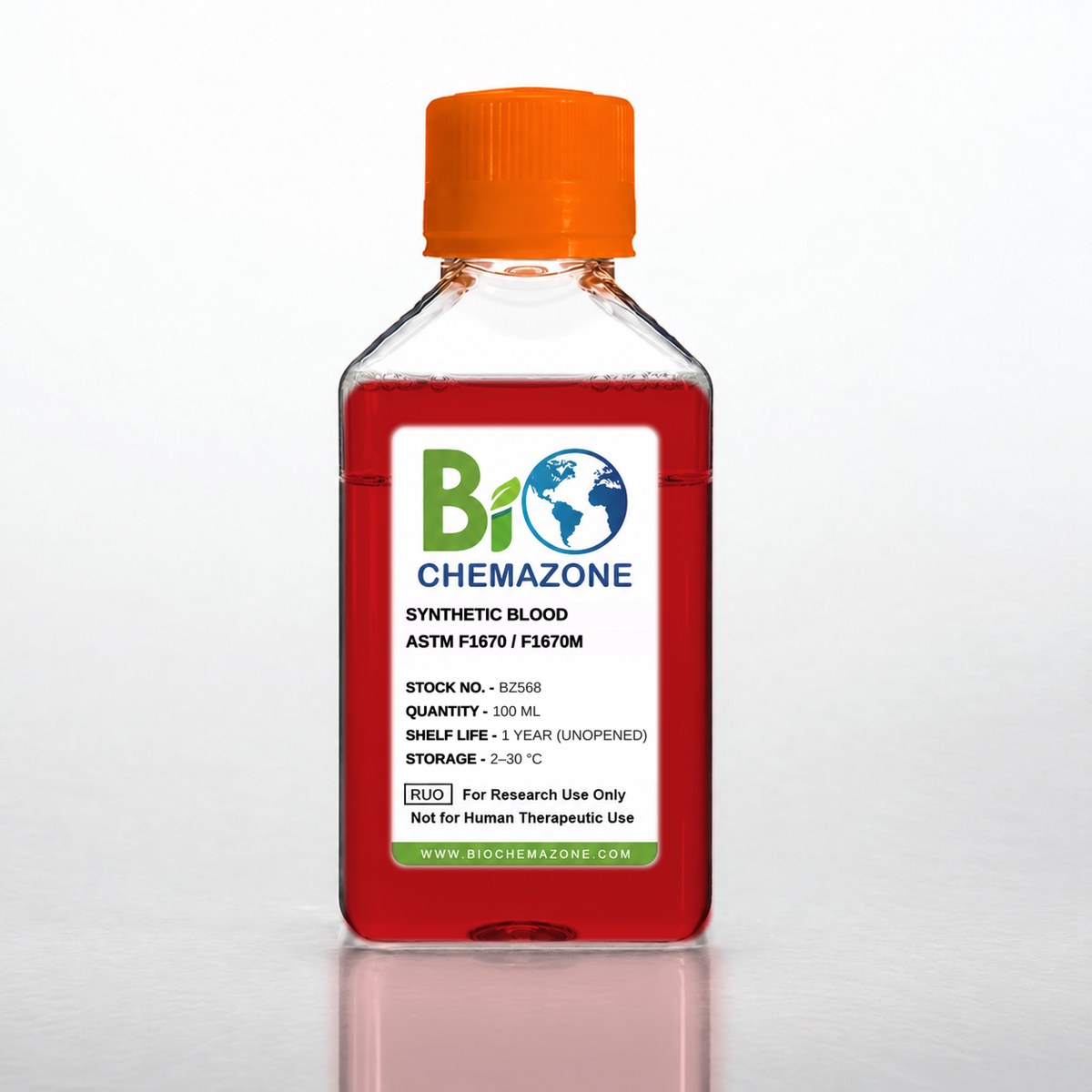

Synthetic Blood ASTM F1670/F1670M (Protective Clothing Penetration Test Fluid) BZ568
Product Code: BZ568
Manufacturer: Biochemazone
Available Pack Sizes: 100 mL, 200 mL, 500 mL, 1 L
Custom Bulk Quantities Available
Product Overview
Biochemazone Synthetic Blood ASTM F1670/F1670M BZ568 is a red, non-biological test fluid prepared for ASTM F1670/F1670M, the standard test method for resistance of materials used in protective clothing to penetration by synthetic blood. In the method, a specimen is held against the fluid in a penetration cell under a set time and pressure sequence and inspected for visible strike-through.
Each batch is prepared with ISO 3696 compliant high-purity water under Biochemazone’s ISO 9001 / GMP quality system and checked for surface tension (0.042 ± 0.002 N/m) and pH (7.3; typical range 7.2–7.4), so that the fluid wets materials the way blood and body fluids do.
BZ568 is used to screen surgical gown, drape, coverall and glove materials and their seams, including the pass/fail screening that precedes viral-penetration testing to ASTM F1671. It contains no human or animal blood.
Key Features & Benefits
✅ Made for ASTM F1670/F1670M – Test fluid for the synthetic-blood penetration method for protective clothing
✅ Controlled Surface Tension – 0.042 ± 0.002 N/m (42 ± 2 mN/m), representative of blood and body fluids
✅ pH 7.3 (Range 7.2–7.4) – Close to the pH of human blood
✅ Strong Red Colour – Clear pass/fail visual end point
✅ Non-Biological & Biosafe – No human or animal blood; no infection risk
✅ Consistent Batch-to-Batch – Standardised formulation for reproducible test results
✅ Ready-to-Use – No dilution or mixing required
✅ Made in Canada – Manufactured under ISO 9001 / GMP quality systems
Applications
🧪 Protective Clothing Testing
• Synthetic-blood penetration resistance to ASTM F1670/F1670M
• Screening before viral-penetration testing (ASTM F1671)
• Barrier classification work on gowns and drapes
🩺 Medical Textiles & PPE Development
• Surgical gown, drape, coverall and glove materials
• Seams, closures and laminated or coated fabrics
• Incoming-material and production quality control
🔬 Research & Training
• Barrier-material research and comparison studies
• Operator training on penetration test cells
Usage Areas
- PPE and protective-clothing manufacturers
- Textile and medical-device test laboratories
- Certification and notified-body laboratories
- Hospital procurement and infection-control quality teams
- Universities and barrier-material research groups
Typical Properties
- Appearance: Red liquid
- pH: 7.3 (typical range 7.2–7.4)
- Surface Tension: 0.042 ± 0.002 N/m
- Water Grade: ISO 3696 purified water
- Composition: Water-based solution with thickener, red dye, surfactant and buffer salts; contains no blood
- Biological Status: Non-biological synthetic fluid
Storage & Stability
- Storage Temperature: 2–30 °C
- Shelf Life: 1 year for unopened bottles
- Shipping: Room temperature
- Mix gently before use; bring to the test temperature stated in the method
Customization Options
- Surface tension and viscosity adjustment
- pH adjustment
- Colour intensity adjustment
- Custom pack sizes and bulk / OEM supply
Ordering Information
BZ568 is available in standard laboratory sizes or OEM/bulk supply formats.
📄 MSDS, Technical Datasheet, and Certificate of Analysis (CoA) available upon request
📧 Email: info@biochemazone.com
🌐 Website: www.biochemazone.com
⚠️ For research, education, and in vitro testing only. Not for human or animal use.
