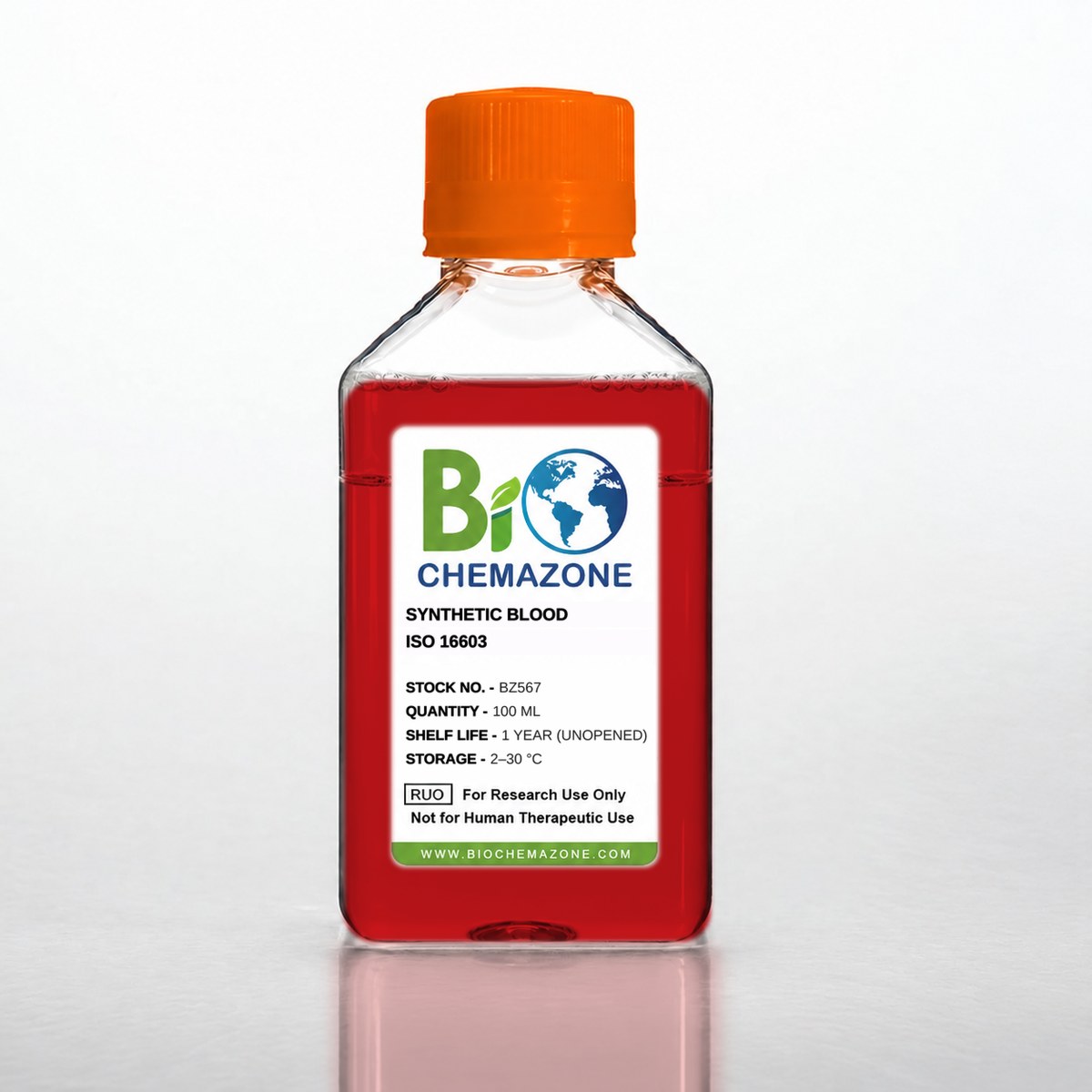

Synthetic Blood ISO 16603 (Protective Clothing Penetration Test Fluid) BZ567
Product Code: BZ567
Manufacturer: Biochemazone
Available Pack Sizes: 100 mL, 200 mL, 500 mL, 1 L
Custom Bulk Quantities Available
Product Overview
Biochemazone Synthetic Blood ISO 16603 BZ567 is a red, non-biological test fluid prepared for the ISO 16603 method, which determines the resistance of protective clothing materials to penetration by blood and body fluids. The fluid is adjusted to the low surface tension of blood and body fluids, so it wets fabrics, films and seams the way real blood does, while remaining safe and consistent to handle.
Each batch is prepared with ISO 3696 compliant high-purity water under Biochemazone’s ISO 9001 / GMP quality system and checked for surface tension (0.042 ± 0.002 N/m) and pH (7.3; typical range 7.2–7.4). The strong red colour gives a clear visual end point when the fluid strikes through a specimen.
BZ567 is used by protective-clothing manufacturers and test laboratories to screen gown, coverall, apron and glove materials under stepped hydrostatic pressure, and as the screening step before viral-penetration testing to ISO 16604. It contains no human or animal blood.
Key Features & Benefits
✅ Made for ISO 16603 – Test fluid for the synthetic-blood penetration method for protective clothing
✅ Controlled Surface Tension – 0.042 ± 0.002 N/m (42 ± 2 mN/m), representative of blood and body fluids
✅ pH 7.3 (Range 7.2–7.4) – Close to the pH of human blood
✅ Strong Red Colour – Easy visual detection of strike-through
✅ Non-Biological & Biosafe – No human or animal blood; no infection risk
✅ Consistent Batch-to-Batch – Standardised formulation for reproducible test results
✅ Ready-to-Use – No dilution or mixing required
✅ Made in Canada – Manufactured under ISO 9001 / GMP quality systems
Applications
🧪 Protective Clothing Testing
• Blood and body-fluid penetration resistance to ISO 16603
• Screening before viral-penetration testing (ISO 16604)
• Classification of materials for infective-agent protective clothing
🩺 Medical Textiles & PPE Development
• Surgical gown, drape, coverall and apron materials
• Seams, closures and laminated or coated fabrics
• Incoming-material and production quality control
🔬 Research & Training
• Barrier-material research and comparison studies
• Operator training on penetration test cells
Usage Areas
- PPE and protective-clothing manufacturers
- Textile and medical-device test laboratories
- Certification and notified-body laboratories
- Hospital procurement and infection-control quality teams
- Universities and barrier-material research groups
Typical Properties
- Appearance: Red liquid
- pH: 7.3 (typical range 7.2–7.4)
- Surface Tension: 0.042 ± 0.002 N/m
- Water Grade: ISO 3696 purified water
- Composition: Water-based solution with thickener, red dye, surfactant and buffer salts; contains no blood
- Biological Status: Non-biological synthetic fluid
Storage & Stability
- Storage Temperature: 2–30 °C
- Shelf Life: 1 year for unopened bottles
- Shipping: Room temperature
- Mix gently before use; bring to the test temperature stated in the method
Customization Options
- Surface tension and viscosity adjustment
- pH adjustment
- Colour intensity adjustment
- Custom pack sizes and bulk / OEM supply
Ordering Information
BZ567 is available in standard laboratory sizes or OEM/bulk supply formats.
📄 MSDS, Technical Datasheet, and Certificate of Analysis (CoA) available upon request
📧 Email: info@biochemazone.com
🌐 Website: www.biochemazone.com
⚠️ For research, education, and in vitro testing only. Not for human or animal use.
